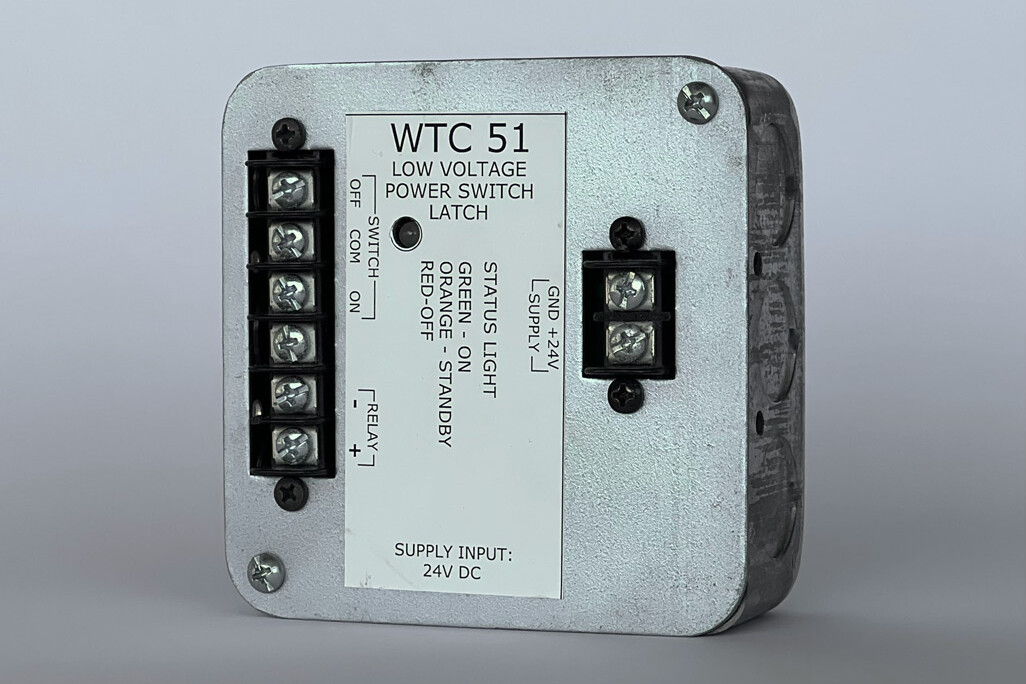

24V Low Voltage Power Switch Latch WR-51
This is a low voltage switch latch. When the common output is momentarily connected to the “On” input, the output will supply 24V DC on the Relay Output. When the common is momentarily connected to the “Off” input, the Relay Output will no longer supply any voltage. There is a variant of this with a reversible input.

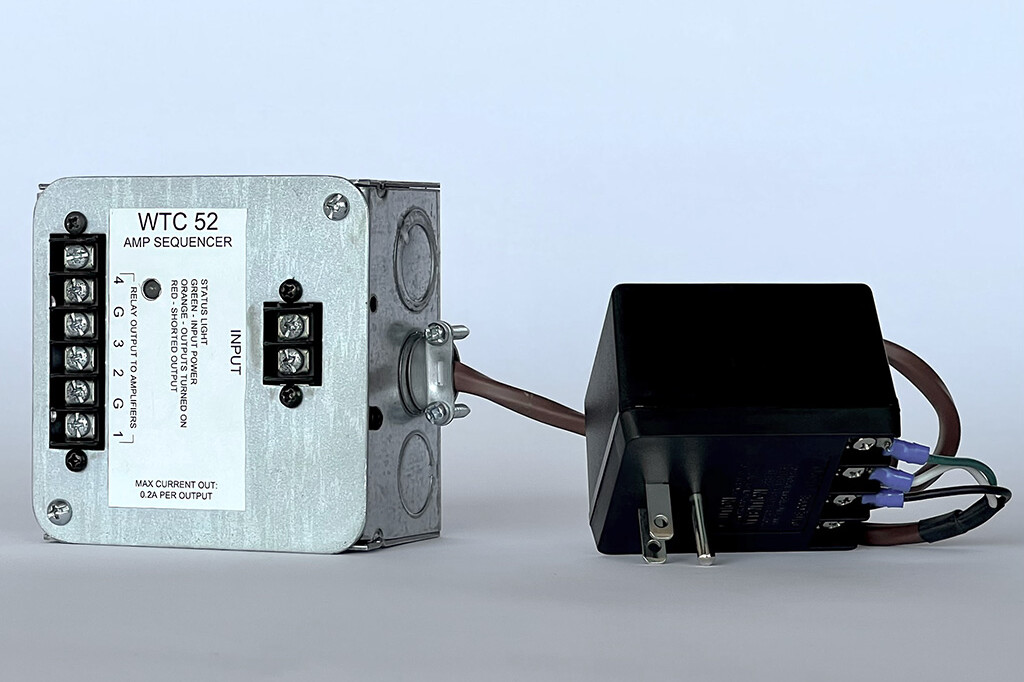

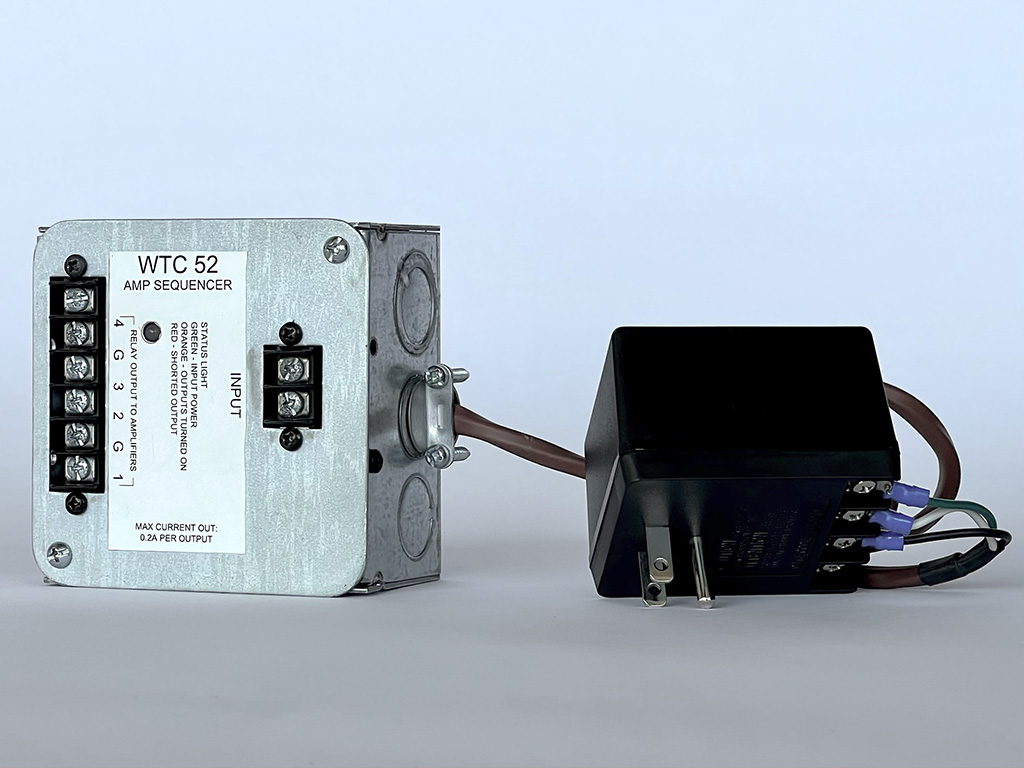

Amplifier Power Sequencer WTC-52
This is a low voltage power on sequencer. When 12V is supplied to the input, each of the 4 outputs is time delayed on so that total inrush current of each device it controls does not exceed the AC circuit limit.
High Current Lamp Regulator WTC-71
This is a voltage regulator specifically designed for incandescent bulbs. 14-20V DC rectifier voltage can be connected and an output of an adjustable voltage between 6-12V will be supplied to the output terminals. The maximum current is 6A.
FET Battery Switch WTC-53
This is a switch that can connect a very high current supply, like a battery that should normally be disconnected to drive coil magnets. The switch on time is around 120ns and is sufficiently fast to keep supplies from folding. The current capability can be configured up to 500 A.
Crome Breaker
This is a current-over-time breaker. It will pass large amounts of current for a settable period of time. This can allow a large bank of stop actions to move, while protecting the electrical system from a short in the wiring or any situation that sustains the current for more time than has been set.
Crome Battery Charger
This is a variable voltage battery charger.

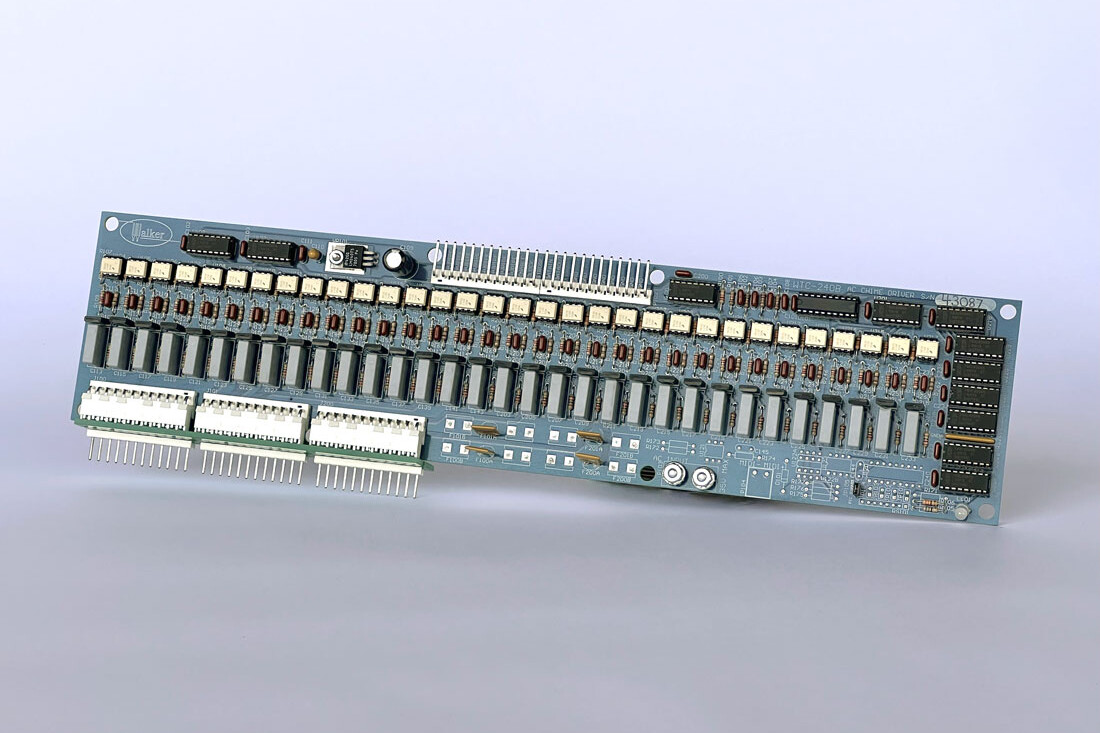

AC Output Chime Driver WTC-240
A 32-high current pipe output driver colored blue. All outputs are software driven and can be configured to drive any magnet requiring an AC output for activation. This runs off the organ rectifier wired to the POI box, but the AC current being used must be wired directly to this output driver.
Magnetic Manual Keying
A very reliable and practical way to add velocity keying to any organ keyboard. The kit provides a keying strip with magnetic sensors and the magnets to mount on each key. Standard length 61 notes - can be special ordered to create any keyboard length from 21 notes up to 88 notes.

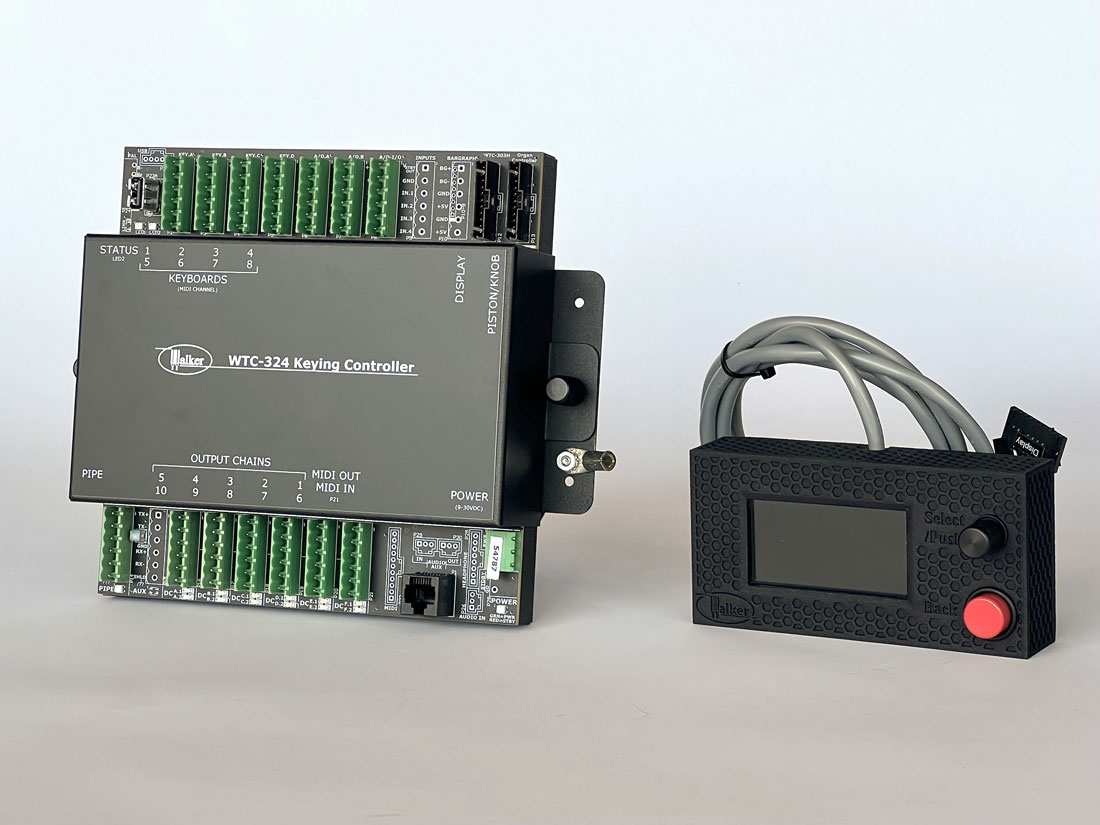

Keying Controller WTC-324
A stand-alone device for WTC’s proven magnetic keying system. With three different output keying options, it is compatible with all known console control systems and supports up to 8 keyboards. The user interface screen provides setup, diagnostics and setting adjustability, including keyboard length, velocity map, and depth of the on point, off point, and second touch on point. The controller sends keying information via MIDI, WTC Pipe Data, or discrete high-current outputs via a POI Box
Includes controller (316-000324-080) and remote-control set-up device (316-000308-9XX). Can be sold without remote control for customers who already have one.
LED pedal board light
LED light strip pedal board light, which produces evenly distributed lighting along the entire pedal board. The wooden strip is designed to mount on the bottom of the key desk, runs on 12V DC, and is dimmable with a PWM output.
Expression/Crescendo Shoe
An extremely consistent and reliable expression shoe, hand-built in the AEolian-Skinner® style. Providing incredibly low static friction with enough dynamic friction for accurate movement, the shoe offers consistent voltage outputs, requiring no adjustment or calibration once set up.
The shoe is available in:
- Pedestal or rail mount
- Polished chrome or black, powder-coated finish
- Rimmed with rubber tread or rimless for wood cap
- Analog (0-5 volts), discrete, or no electronic output
- Sostenuto or Sustain switch

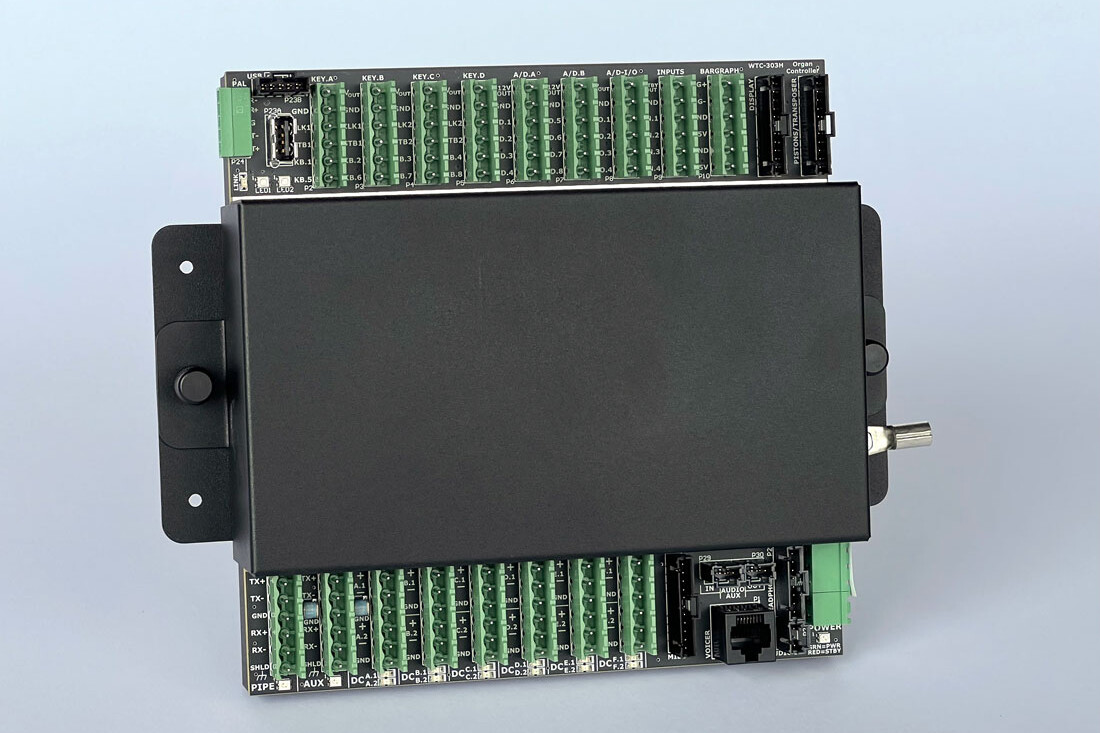

Console Controller WTC-303
The most highly integrated console controller in the industry. It provides direct wiring for WTC’s proven magnetic keying system, Smart Controls or Standard Data Chain, MIDI input/output, PAL audio input/output, USB flash memory, user interface display and expression/crescendo analog inputs. Everything is contained in one small 7.25” x 7.25” board
Headphone Interface WTC-290
Headphone interface for use with the WTC-303 Console Controller. Includes a headphone jack with insertion detection and a volume knob.

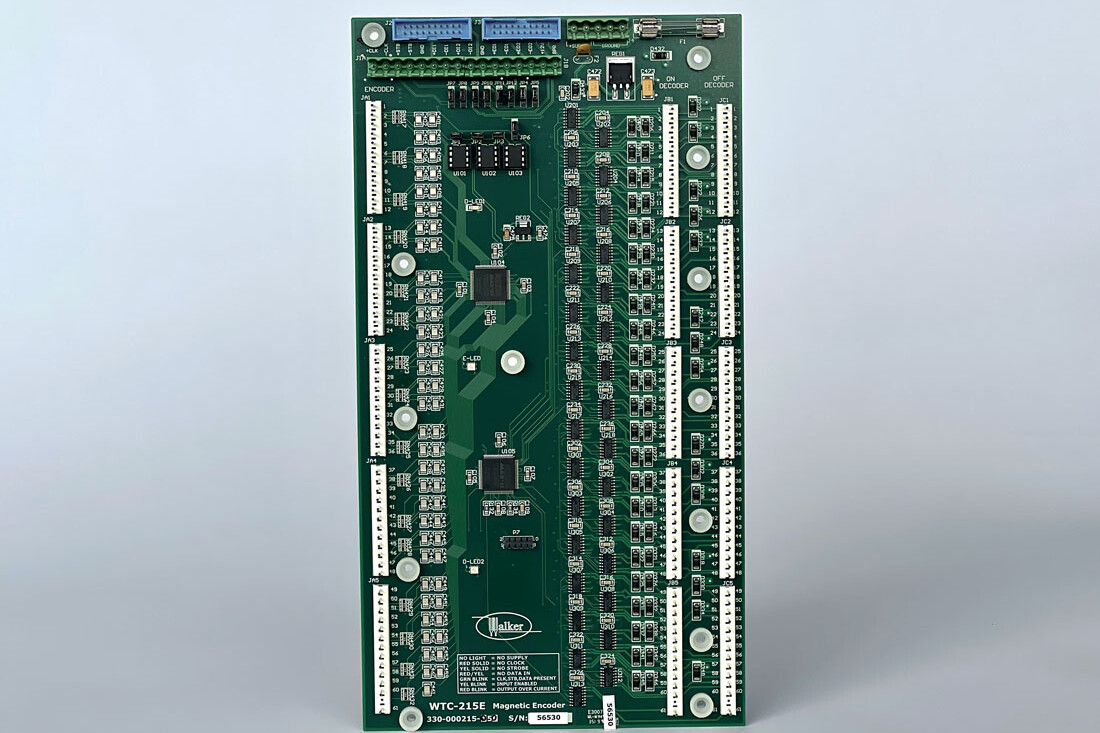

61 Input Encoder 122 Output Decoder WTC-215
An input/output board for stop-action controls. It provides an input for the switch and two outputs for the ON and OFF coil of each control. The inputs can be used independently from the outputs, and the outputs can be used for purposes other than driving coils. The inputs are negative common and the outputs drive low. The outputs are fully protected from shorts and over-current situations, with diagnostic LED’s to indicate the current state of the board. The input and output functionality is configured by the control system.

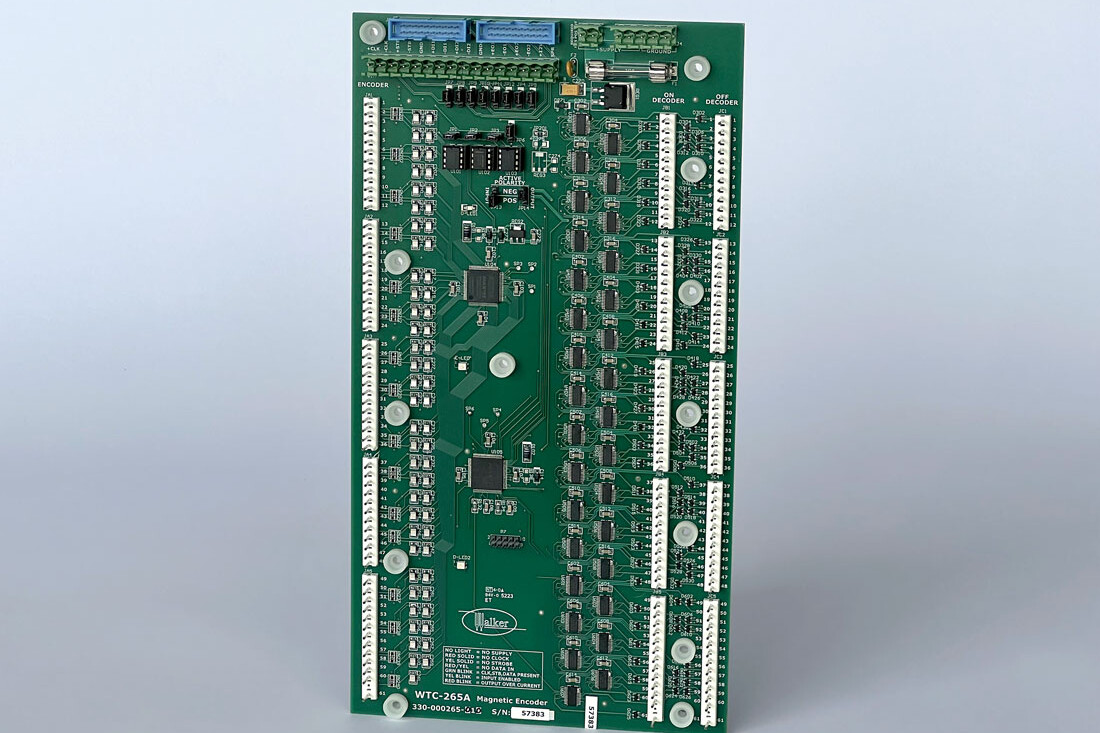

61 Input Encoder 122 Output Decoder WTC-265
An input/output board for stop-action controls. It provides an input for the switch and two outputs for the ON and OFF coil of each control. The inputs can be used independently from the outputs, and the outputs can be used for purposes other than driving coils. The inputs are positive or negative common and the outputs drive low or high, both are selected by a jumper. The outputs are fully protected from shorts and over-current situations, with diagnostic LED’s to indicate the current state of the board. The input and output functionality is configured by the control system.

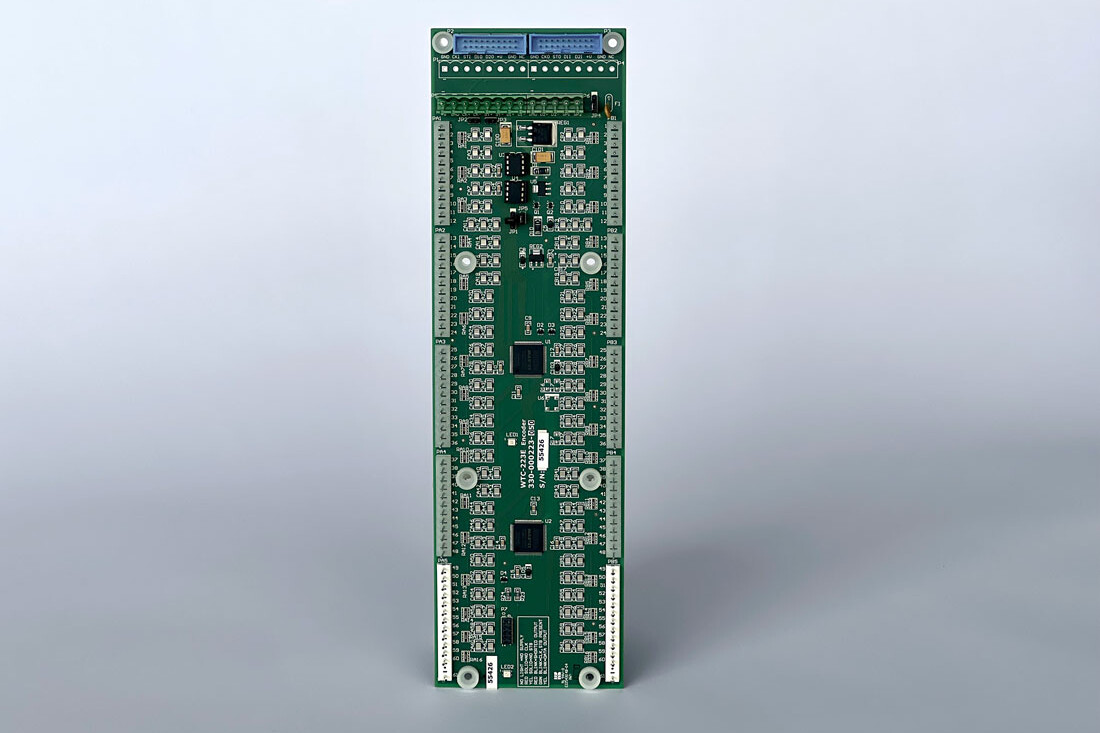

122 Input Encoder WTC-223
An input board for keying, piston, or toe stud inputs. The inputs can be either positive or negative common, set with a jumper. The input functionality is configured by the control system.
Data Chain Converter WTC-280
This converter will convert legacy WTC data chains (Data, Clk, Stb) into the smart chain. This allows for systems that are using the legacy chain to add new smart controls. This same converter will convert in the opposite direction, allowing systems that use the Smart Chain to use legacy devices.
Digital Generator WTC-351
This is the premiere digital generator from Walker. This generator can produce as many as 32 digital pipe ranks and has ample amounts of flash memory for a large sample set. A single generator is used with the POET 1 and 2-4 with the POET 4.
Digital Generator WTC-301
This digital generator supports Analog and Digital outputs. This enables this product to be used in older Walker products while providing all of our latest audio evolutions. This generator supports up to 32 digital pipe ranks and has a large amount of sample memory.

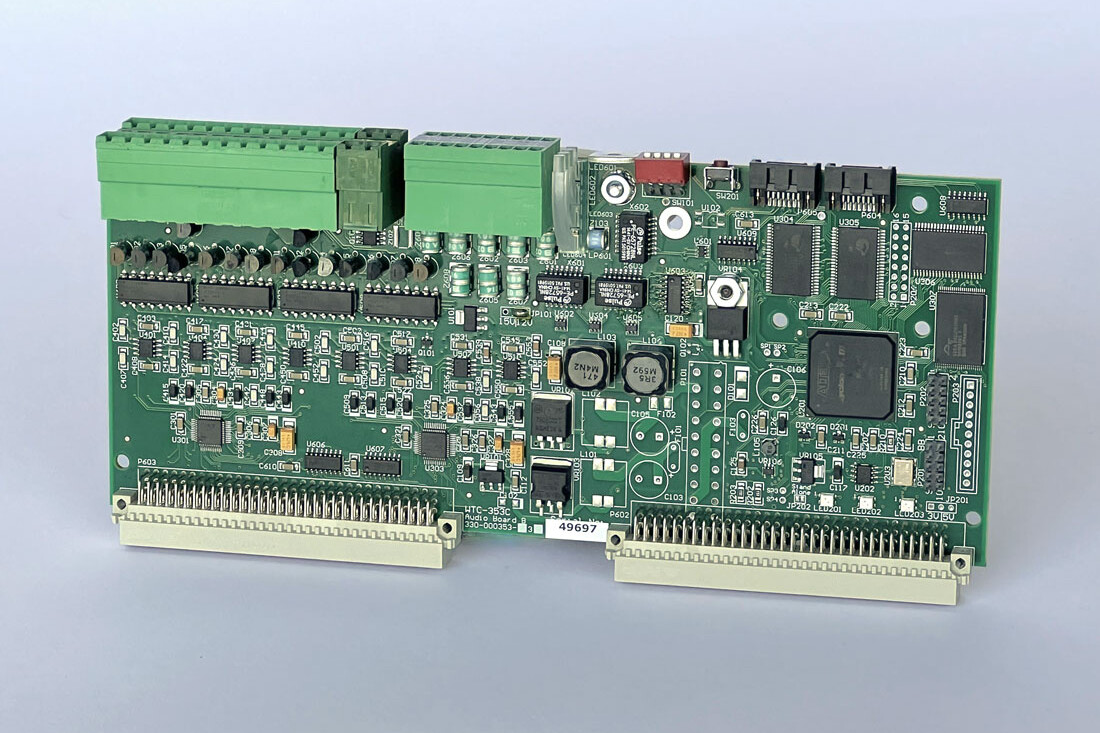

“B” Audio Board WTC-353
This is an audio expansion board for the POET 4 system. This board doubles the audio processing channels of the POET 4 and adds an additional 16 Analog output channels. This board also has 32 PAL output channels and 16 PAL input channels. These can be used to send digital audio to remote locations. This board can also be used in a “stand alone” mode for receiving PAL audio with the ability to process it for use in a unique location.
Long distance PAL Transceiver
This is a long-distance digital audio transceiver. This model has 4 analog inputs and 4 analog outputs and provides a relay output to turn on an amplifier. This model uses PAL over Cat5e (750 Variant) or Fiber can be selected (250 Variant).
Long distance PAL Receiver
This is a long-distance digital audio receiver. This model has 8 analog audio output channels and provides for a relay output to turn on an amplifier and uses PAL over Cat5e(850 Variant) or Fiber(350 Variant).
Long distance PAL Transmitter
This is a long-distance digital audio transmitter. This model has 8 analog audio input channels and uses PAL over Cat5e(950 Variant) or Fiber(450 Variant).

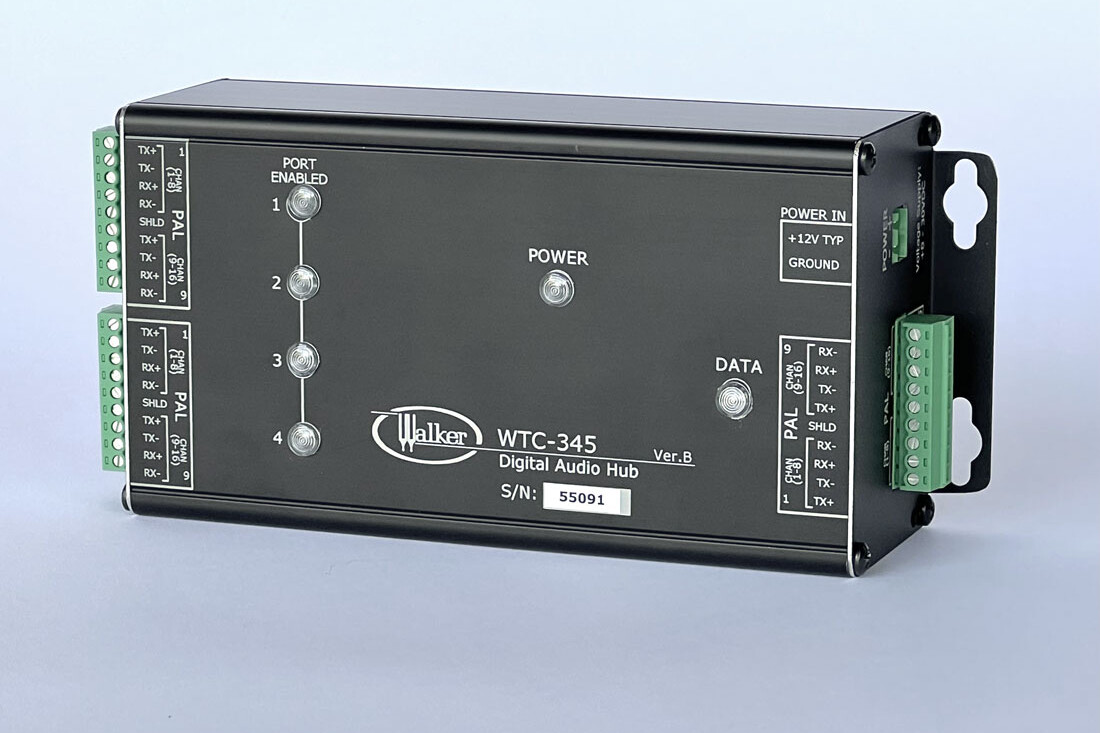

4 Input 1 Output PAL Hub
This hub allows for up to 4 PAL Cat5e input ports to be connected to 1 Cat5e PAL destination port. This can be used to give up to 4 possible connection points for a PAL source. Only one connection can be used at any time, but all 4 can be wired to different locations in a building for convenient connection points. The board supports up to 16 channels of Audio in each direction.
