μPOET (micro POET) WTC-350
This is a complete digital tone generation system intended for small additions to Pipe Organs. This system provides for up to 16 digital ranks. The audio system has 10 analog outputs, 2 analog inputs and 2 SPDIF I/O. This also has 8 PAL input and 8 output PAL channels. The µPOET also supports some basic onsite voicing and diagnostics via an included screen and interface box.
POET 1
The POET 1 is the basis for medium-sized digital additions to pipe organs. It consists of the interface to encoders or direct digital links (Peterson, Artisan, Rodgers MIDI, MIDI and Walker) and the audio output/input for a tone generator. The POET 1 has 18 channels of audio output, 6 audio input and 2 channels of SPDIF I/O. The POET 1 supports 1 digital generator.

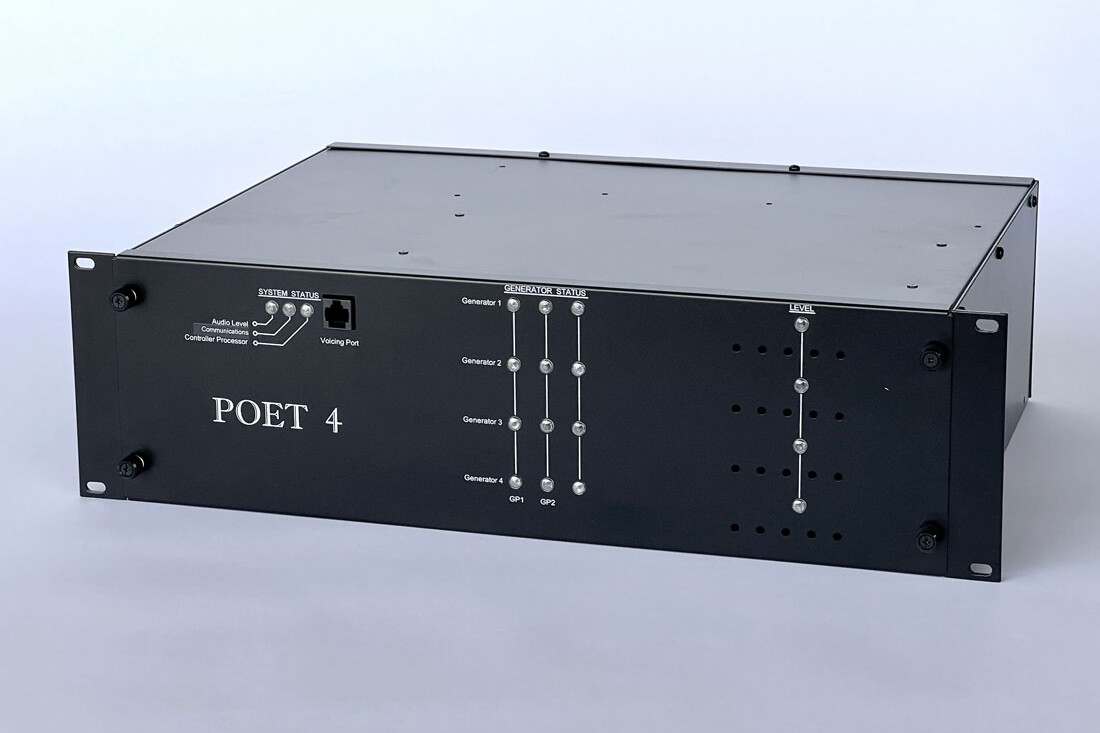

POET 4
The POET 4 is the basis for fully digital organs and large digital additions to pipe organs. It consists of the interface to encoders or direct digital links (Peterson, Artisan, Rodgers MIDI, MIDI, and Walker) and the audio output/input. The POET 4 has 18 native channels of audio output, 6 audio input and 2 channels of SPDIF I/O. The POET 4 supports up to 4 tone generators and the ability to add extra audio processing and analog outputs via a 353 “B” audio board.
Digital Generator WTC-351
This is the premiere digital generator from Walker. This generator can produce as many as 32 digital pipe ranks and has ample amounts of flash memory for a large sample set. A single generator is used with the POET 1 and 2-4 with the POET 4.
Digital Generator WTC-301
This digital generator supports Analog and Digital outputs. This enables this product to be used in older Walker products while providing all of our latest audio evolutions. This generator supports up to 32 digital pipe ranks and has a large amount of sample memory.
“B” Audio Board WTC-353
This is an audio expansion board for the POET 4 system. This board doubles the audio processing channels of the POET 4 and adds an additional 16 Analog output channels. This board also has 32 PAL output channels and 16 PAL input channels. These can be used to send digital audio to remote locations. This board can also be used in a “stand alone” mode for receiving PAL audio with the ability to process it for use in a unique location.
Long distance PAL Transceiver
This is a long-distance digital audio transceiver. This model has 4 analog inputs and 4 analog outputs and provides a relay output to turn on an amplifier. This model uses PAL over Cat5e (750 Variant) or Fiber can be selected (250 Variant).
Long distance PAL Receiver
This is a long-distance digital audio receiver. This model has 8 analog audio output channels and provides for a relay output to turn on an amplifier and uses PAL over Cat5e(850 Variant) or Fiber(350 Variant).
Long distance PAL Transmitter
This is a long-distance digital audio transmitter. This model has 8 analog audio input channels and uses PAL over Cat5e(950 Variant) or Fiber(450 Variant).
SATA to PAL adapter
This adapter can be mounted on the back of a POET to convert the short-range PAL over SATA to a long-distance PAL over Cat5e. This adapter supports either 8 Channel input/output or 16 Channel output.
4 Input 1 Output PAL Hub
This hub allows for up to 4 PAL Cat5e input ports to be connected to 1 Cat5e PAL destination port. This can be used to give up to 4 possible connection points for a PAL source. Only one connection can be used at any time, but all 4 can be wired to different locations in a building for convenient connection points. The board supports up to 16 channels of Audio in each direction.

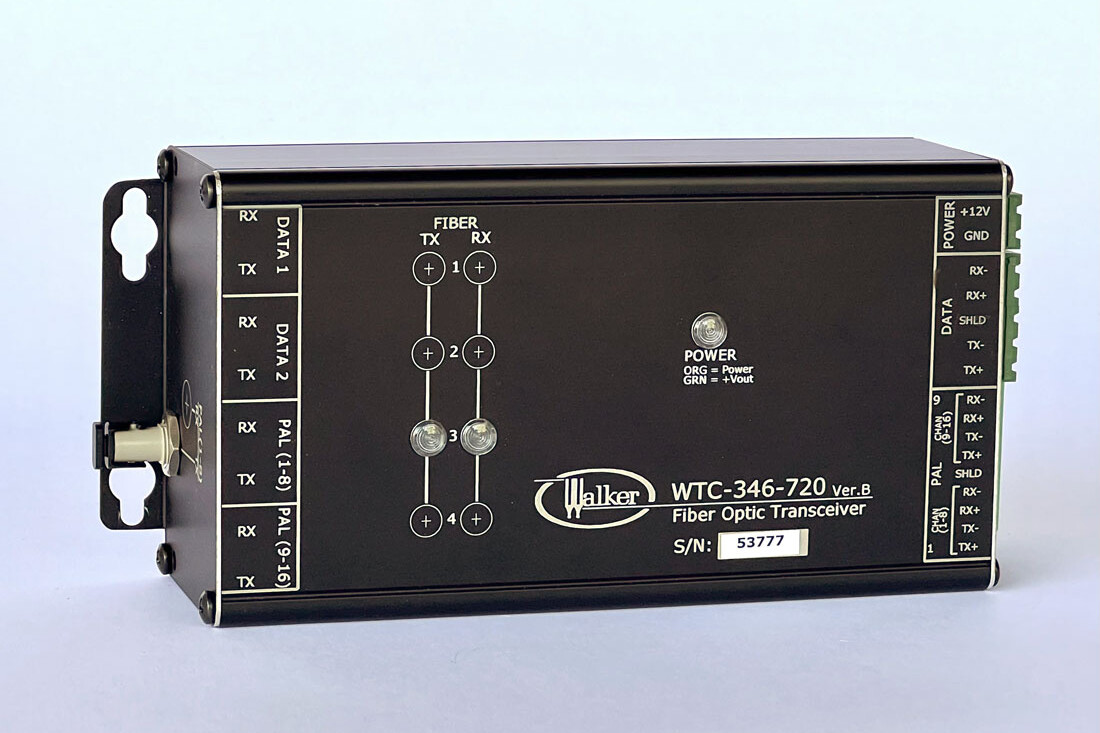

PAL/RS485 to Fiber WTC-346
This is a transceiver that can be used to send PAL or RS485 (ie. Pipe Data) over a fiber optic connection.
