24V Low Voltage Power Switch Latch WR-51
This is a low voltage switch latch. When the common output is momentarily connected to the “On” input, the output will supply 24V DC on the Relay Output. When the common is momentarily connected to the “Off” input, the Relay Output will no longer supply any voltage. There is a variant of this with a reversible input.
Amplifier Power Sequencer WTC-52
This is a low voltage power on sequencer. When 12V is supplied to the input, each of the 4 outputs is time delayed on so that total inrush current of each device it controls does not exceed the AC circuit limit.

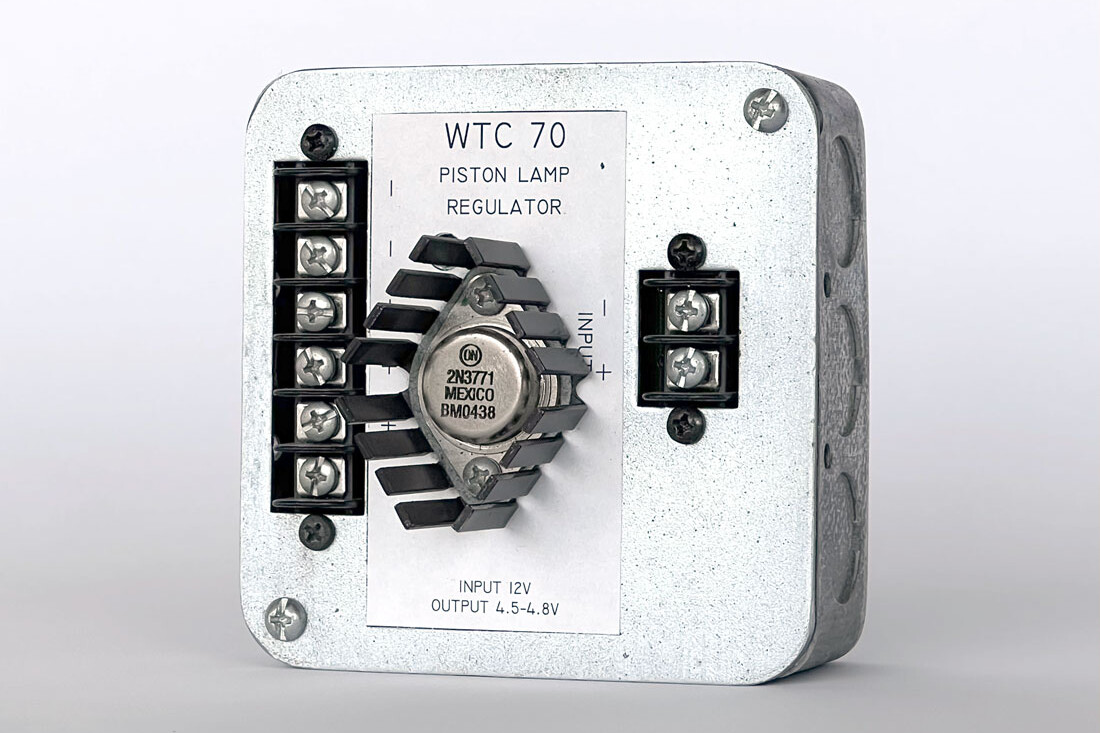

Piston Lamp Regulator WTC-70
This is a voltage regulator specifically designed for incandescent piston buttons. 12V DC rectifier voltage can be connected and an output between an adjustable 4.5 to 4.8 volts will be supplied on the output terminals.
High Current Lamp Regulator WTC-71
This is a voltage regulator specifically designed for incandescent bulbs. 14-20V DC rectifier voltage can be connected and an output of an adjustable voltage between 6-12V will be supplied to the output terminals. The maximum current is 6A.
FET Battery Switch WTC-53
This is a switch that can connect a very high current supply, like a battery that should normally be disconnected to drive coil magnets. The switch on time is around 120ns and is sufficiently fast to keep supplies from folding. The current capability can be configured up to 500 A.
Crome Breaker
This is a current-over-time breaker. It will pass large amounts of current for a settable period of time. This can allow a large bank of stop actions to move, while protecting the electrical system from a short in the wiring or any situation that sustains the current for more time than has been set.
Crome Battery Charger
This is a variable voltage battery charger.

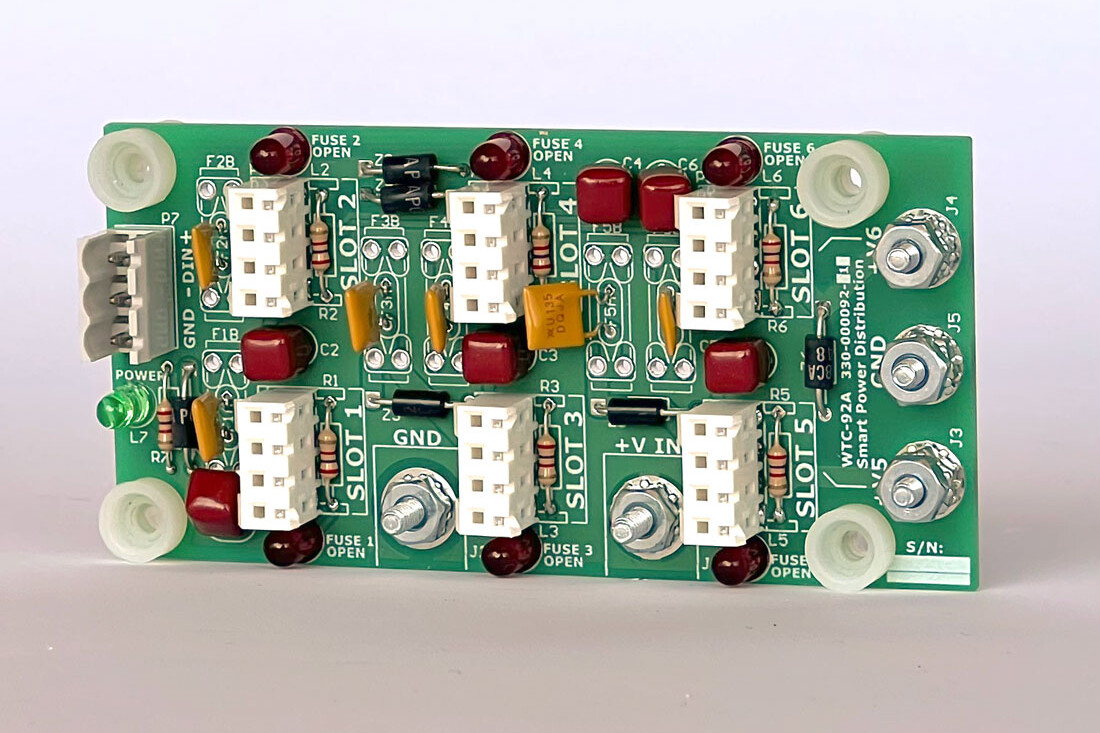

Smart Power Distribution WTC-92
This is a power distribution board for use with Walker Smart controls. This board takes care of fusing all of the power links and distributing the Data to each Smart Device group. The fuses are automatically resettable and there is a diagnostic LED for each one of the 6 outputs, alerting to the fuse being open.
