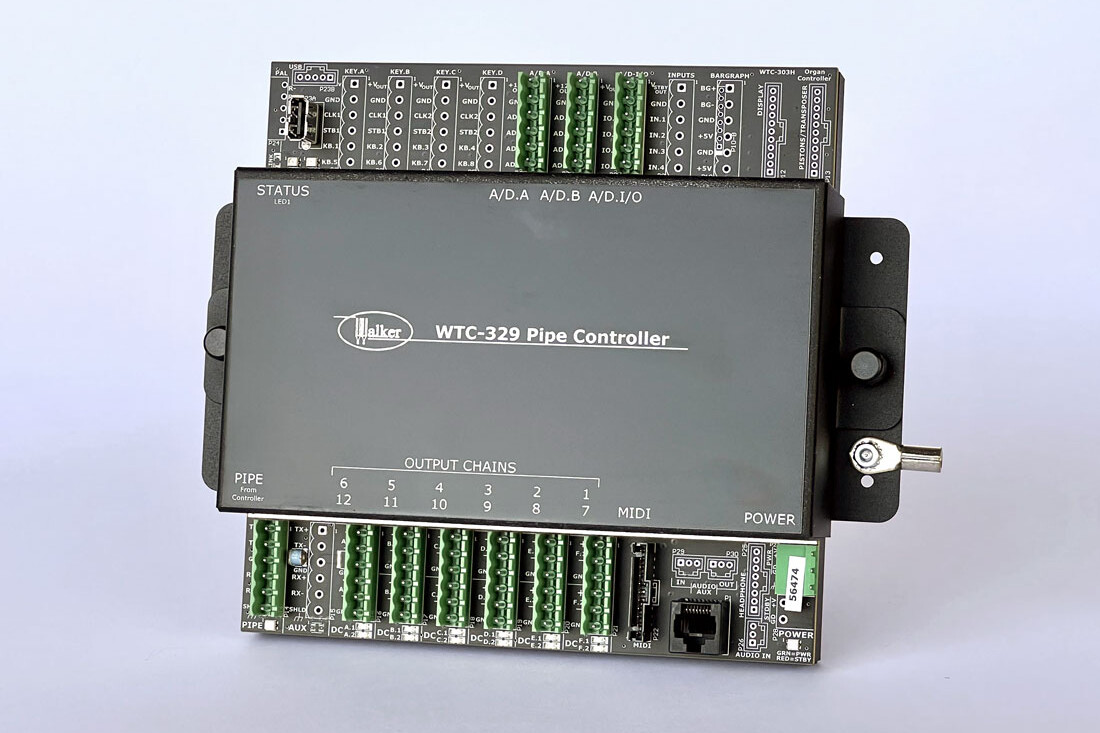

Pipe Computer WTC-329
A high-speed pipe data computer, designed to process all pipe data and send that information to the Pipe Organ Interface boxes. It supports as many as 12 POI boxes and has a WTC voicing port for PC updates and a USB port for updates. This is a direct replacement and upgrade from a WTC-229.

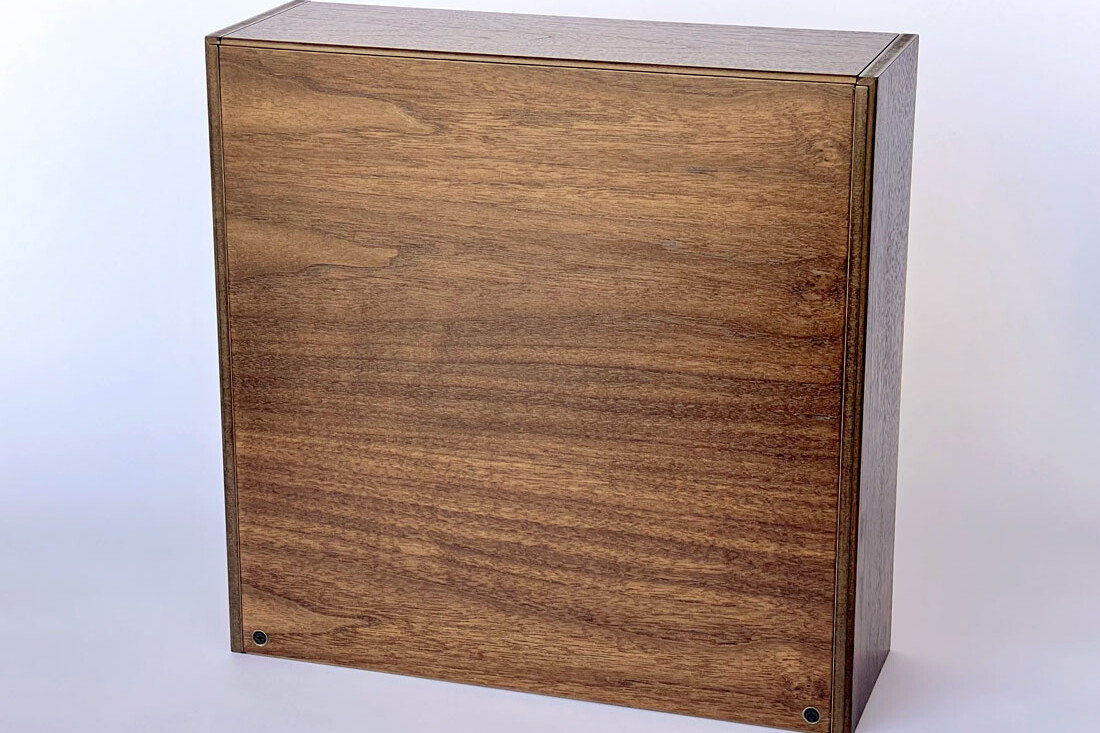

Pipe Organ Interface (POI) Box
The mounting point for output drivers, this box can mount as many as six 85-output pipe drivers and be used with any mix of output drivers simultaneously. The box itself is a hand-crafted, furniture-grade walnut enclosure, designed to look attractive in any high-end pipe chamber.

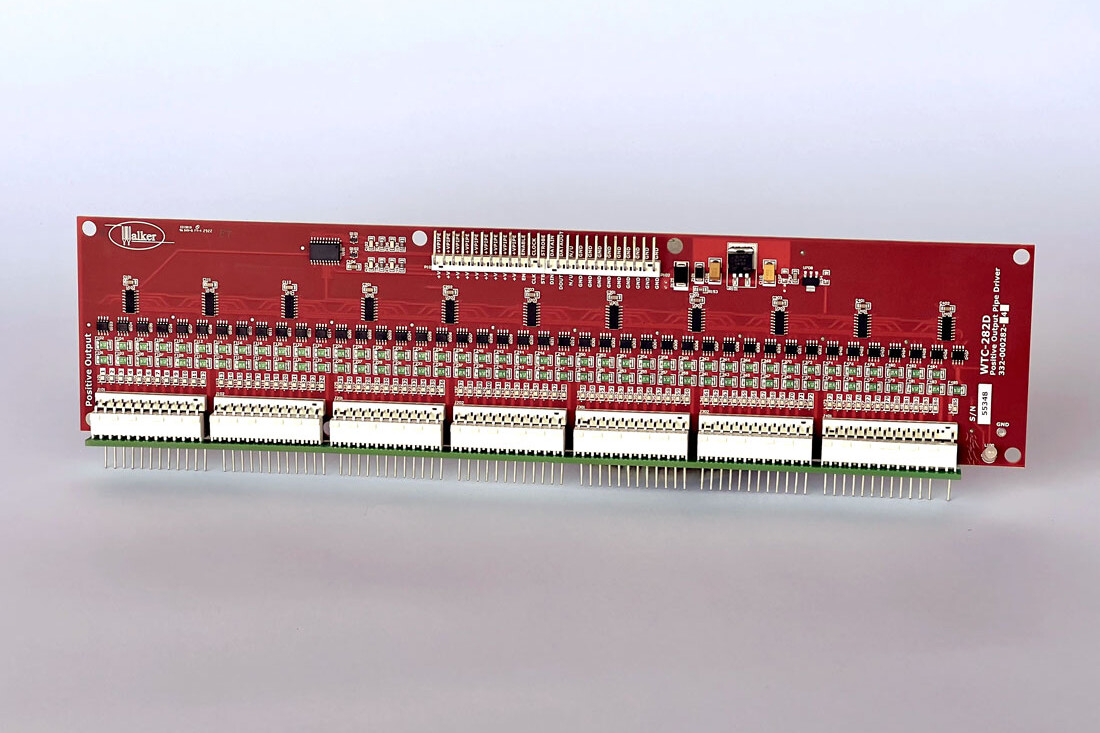

Positive Output Driver WTC-282
An 85-output high current pipe driver colored red. All outputs are software driven and can be configured to drive any magnet requiring a positive output for activation. This runs off the organ rectifier wired to the POI box.

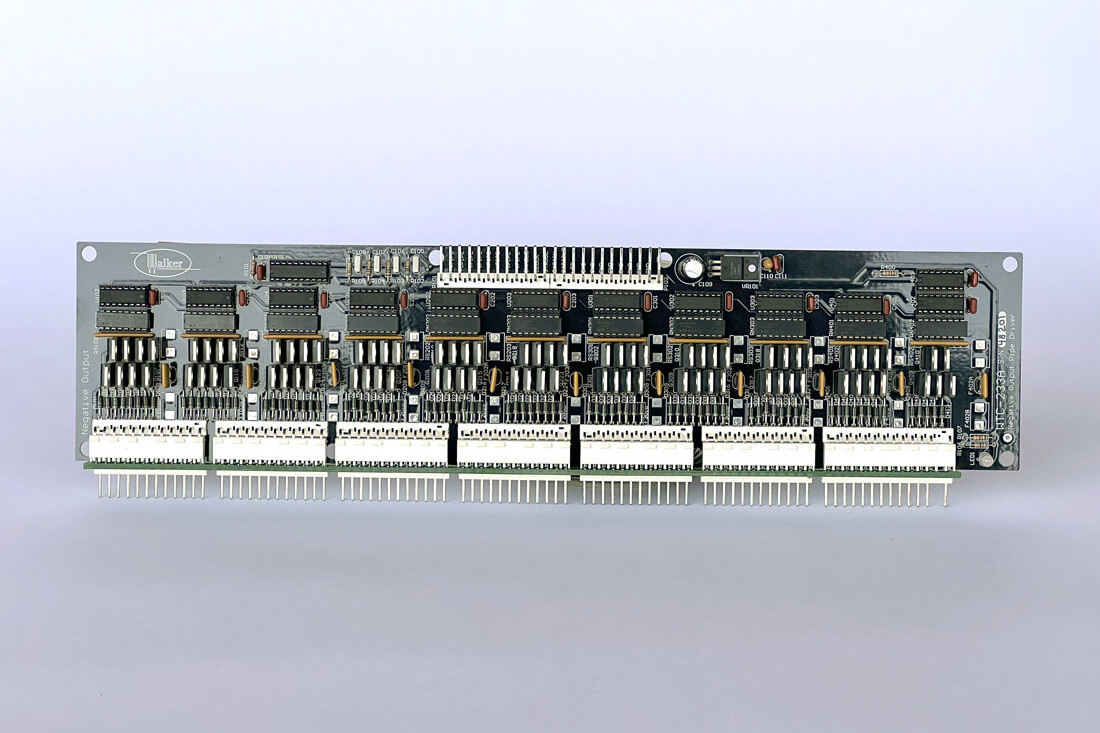

Negative Output Driver WTC-233
An 85-output high current pipe driver colored black. All outputs are software driven and can be configured to drive any magnet requiring a negative output for activation. This runs off the organ rectifier wired to the POI box.
AC Output Chime Driver WTC-240
A 32-high current pipe output driver colored blue. All outputs are software driven and can be configured to drive any magnet requiring an AC output for activation. This runs off the organ rectifier wired to the POI box, but the AC current being used must be wired directly to this output driver.

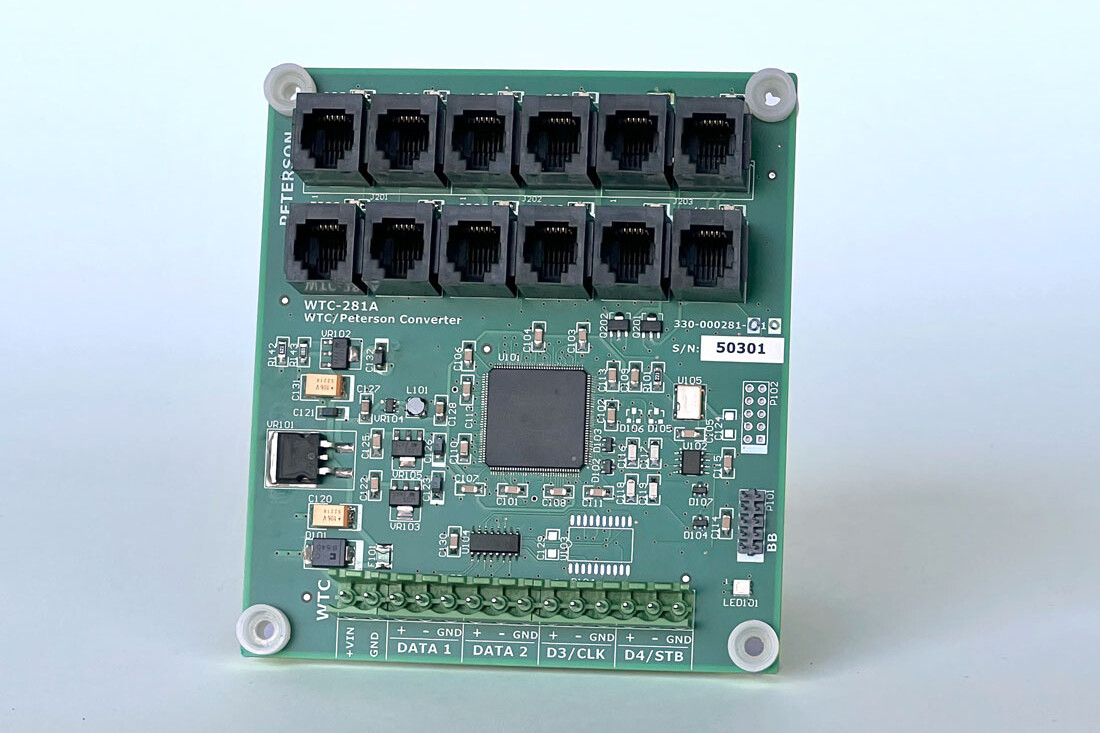

WTC to Peterson Data Converter WTC-281
Converts a classic serial stream into 12 legacy Peterson serial streams. The WTC 329 can create a classic serial stream to work with this converter.

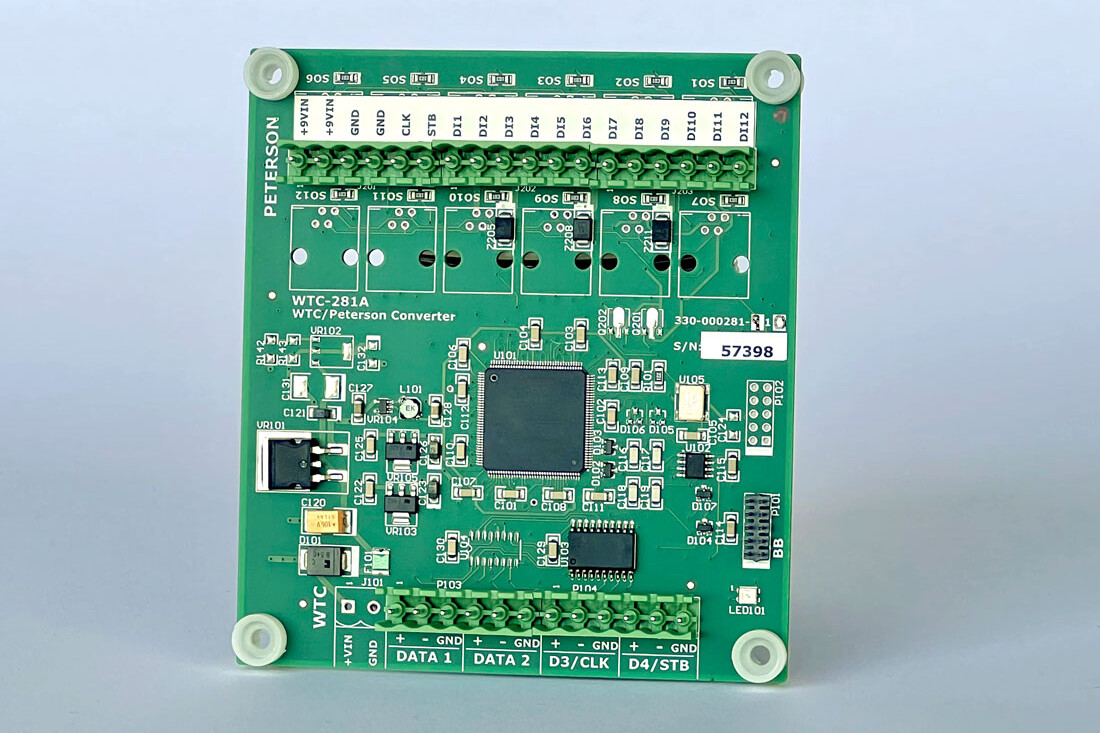

Peterson to WTC Data Converter WTC-281
This converts up to 12 legacy Peterson pipe driver streams into a classic data stream. The uPOET and POET can natively read in this classic stream and this converter allows them to read in Peterson streams without having to wire up discrete inputs.
