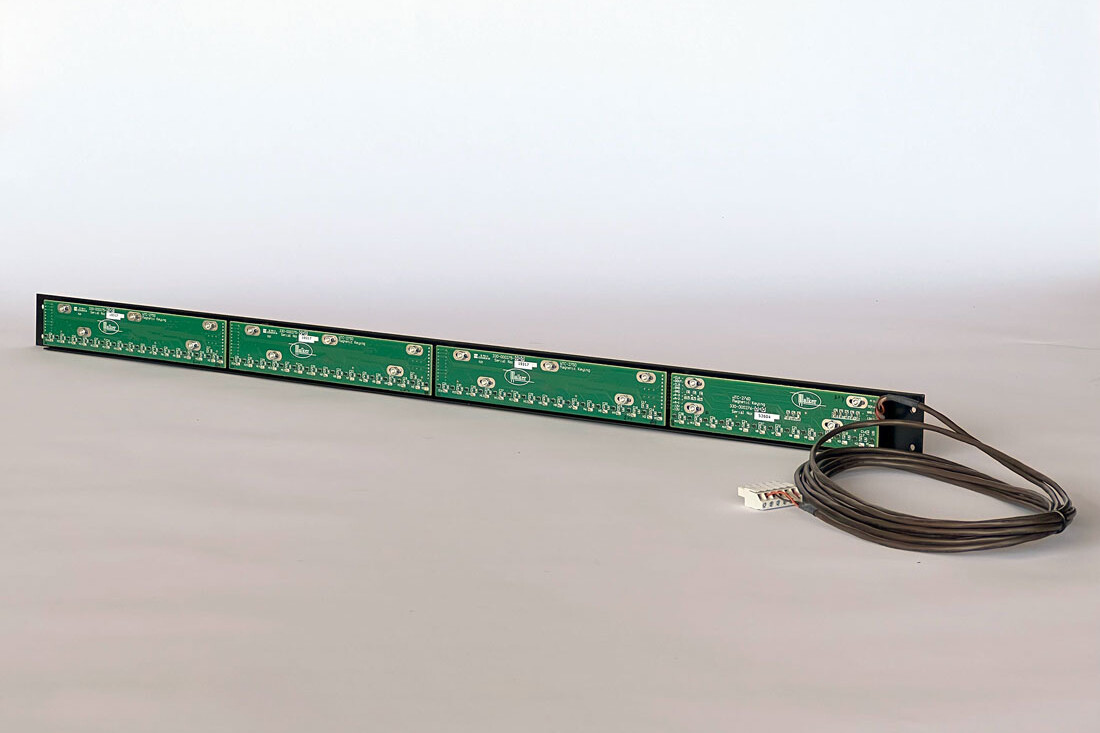

Magnetic Manual Keying
A very reliable and practical way to add velocity keying to any organ keyboard. The kit provides a keying strip with magnetic sensors and the magnets to mount on each key. Standard length 61 notes - can be special ordered to create any keyboard length from 21 notes up to 88 notes.

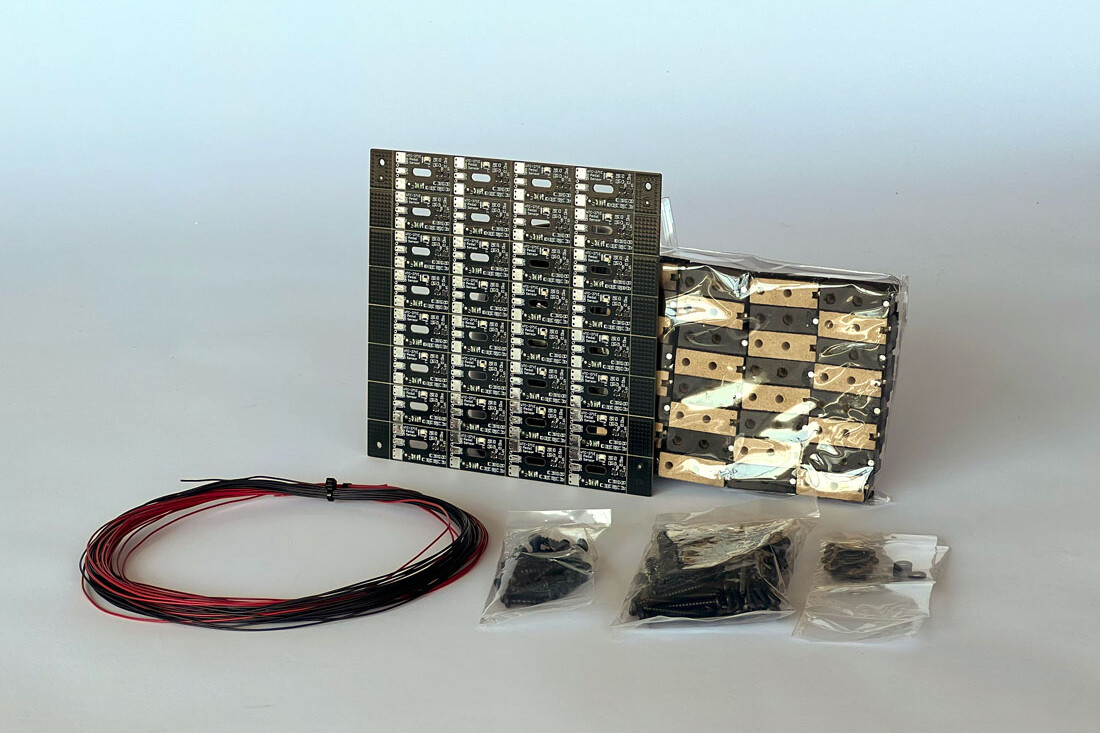

Magnetic Pedal Keying
Everything needed to install magnetic keying contacts on a pedal board. The pedal board contacts use magnets to sense when the pedal is pressed down. The depth can be set easily upon installation by sliding the circuit board up or down and watching the LED indicator on each sensor board. This kit comes with 32 pedal board sensors and 32 magnet assembles for mounting to the pedals.
Keying Controller WTC-324
A stand-alone device for WTC’s proven magnetic keying system. With three different output keying options, it is compatible with all known console control systems and supports up to 8 keyboards. The user interface screen provides setup, diagnostics and setting adjustability, including keyboard length, velocity map, and depth of the on point, off point, and second touch on point. The controller sends keying information via MIDI, WTC Pipe Data, or discrete high-current outputs via a POI Box
Includes controller (316-000324-080) and remote-control set-up device (316-000308-9XX). Can be sold without remote control for customers who already have one.
Magnetic Tracker Touch Kit
Everything needed to add Tracker Touch to a standard keyboard. The kit provides a steel bar with two effect settings, a ful set of magnets for the keys and mounting screws.
LED pedal board light
LED light strip pedal board light, which produces evenly distributed lighting along the entire pedal board. The wooden strip is designed to mount on the bottom of the key desk, runs on 12V DC, and is dimmable with a PWM output.
Expression/Crescendo Shoe
An extremely consistent and reliable expression shoe, hand-built in the AEolian-Skinner® style. Providing incredibly low static friction with enough dynamic friction for accurate movement, the shoe offers consistent voltage outputs, requiring no adjustment or calibration once set up.
The shoe is available in:
- Pedestal or rail mount
- Polished chrome or black, powder-coated finish
- Rimmed with rubber tread or rimless for wood cap
- Analog (0-5 volts), discrete, or no electronic output
- Sostenuto or Sustain switch
Thumb Piston
A very reliable hall-effect (contactless) thumb piston with a concave surface and curved edge in the AEolian-Skinner® style. Available in white, red, black, or yellow, with a standard black or optional green surround. The piston can be configured for either positive or negative switch output and positive or negative light input. The LED back light mimics the warm color of an incandescent bulb. Custom engraving is available for all piston buttons.
Smart Thumb Piston
Nearly identical to the standard thumb piston, but designed for use with WTC Smart Chain. All colors and engraving options are available
Console Controller WTC-303
The most highly integrated console controller in the industry. It provides direct wiring for WTC’s proven magnetic keying system, Smart Controls or Standard Data Chain, MIDI input/output, PAL audio input/output, USB flash memory, user interface display and expression/crescendo analog inputs. Everything is contained in one small 7.25” x 7.25” board
Headphone Interface WTC-290
Headphone interface for use with the WTC-303 Console Controller. Includes a headphone jack with insertion detection and a volume knob.
User Interface Screen
A small black and white screen which displays information and interfaces with the WTC Console Controller. This screen is required to use the Console Controller.
61 Input Encoder 122 Output Decoder WTC-215
An input/output board for stop-action controls. It provides an input for the switch and two outputs for the ON and OFF coil of each control. The inputs can be used independently from the outputs, and the outputs can be used for purposes other than driving coils. The inputs are negative common and the outputs drive low. The outputs are fully protected from shorts and over-current situations, with diagnostic LED’s to indicate the current state of the board. The input and output functionality is configured by the control system.
61 Input Encoder 122 Output Decoder WTC-265
An input/output board for stop-action controls. It provides an input for the switch and two outputs for the ON and OFF coil of each control. The inputs can be used independently from the outputs, and the outputs can be used for purposes other than driving coils. The inputs are positive or negative common and the outputs drive low or high, both are selected by a jumper. The outputs are fully protected from shorts and over-current situations, with diagnostic LED’s to indicate the current state of the board. The input and output functionality is configured by the control system.
122 Input Encoder WTC-223
An input board for keying, piston, or toe stud inputs. The inputs can be either positive or negative common, set with a jumper. The input functionality is configured by the control system.
Smart Expression/Crescendo Bargraph WTC-319
A 10-LED bargraph board to be used either horizontally or vertically in a group. Available with either all yellow LED’s or with eight green and two red LED’s, for use as a Crescendo/Tutti indicator.
Smart 7-Segment Display WTC-320
A 7-segment red LED numerical display. It can be configured to have 1-4 digits, stands ¾” high and is up to 2 inches long when configured for 4 digits.
Smart 73 Input Encoder WTC-323
An input board for keying, piston, or toe stud inputs. The inputs can be either positive or negative common, selected by a jumper. The input functionality is configured by the control system.
Smart 4 Input/Output Dimmer WTC-393
A small 4 I/O board, capable of PWM (pulse width modulated) outputs. When used with the WTC-303 Console controller this board can control up to 4 LED lights. The inputs and outputs are completely software configurable.
Smart SAM Driver
A small driver board to plug directly onto the back of a Syndyne SAM. This board moves the action intelligently and reports back to the controller the current state of the control.
Smart Drawknob Driver
A small driver board to plug directly onto the back of a Syndyne mechanism. This board moves the action intelligently and reports back to the controller the current state of the control.
Data Chain Converter WTC-280
This converter will convert legacy WTC data chains (Data, Clk, Stb) into the smart chain. This allows for systems that are using the legacy chain to add new smart controls. This same converter will convert in the opposite direction, allowing systems that use the Smart Chain to use legacy devices.
